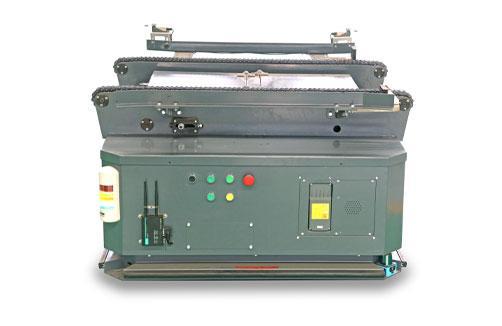

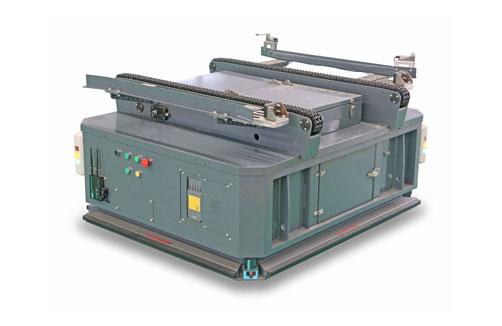

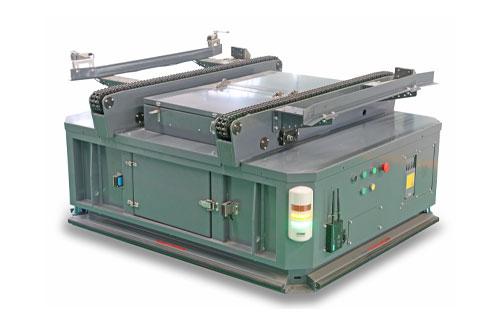

Omnidirectional conveyor AGV SMC-AD-1500-MT
Features
The omnidirectional conveyor AGV can seamlessly connect with the customer's MES system, and realize the fully automatic reciprocating movement from the high-bay warehouse to the sorting area, instead of manual handling.
Technical Parameters
|
model |
SMC-AD-1500-MT |
||
|
way to control |
Automatic + manual |
Drive way |
Double steering wheel drive |
|
Way of walking |
Forward, back, and move left and right |
||
|
battery |
Lead-acid maintenance-free battery, 48V100AH |
||
|
Driving speed |
0-40m/min |
Turning radius |
0 |
|
Driving voltage |
48v |
Guide way |
Magnetic navigation |
|
positioning accuracy |
±10mm |
Gradeability |
≤3% |
|
Security |
Lidar obstacle avoidance sensor + anti-collision strip + emergency stop switch |
||
|
Load (KG) |
1500 |
Alarm form |
Music player + color light |
|
charging method |
Manual charging/quick battery change |
Safety sensing range |
≤80cm (adjustable) |
|
communication method |
Wireless local area network; wireless communication/WIFI (optional) |
||
|
Environmental requirements |
20—90% humidity, -10℃～50℃ |
||
