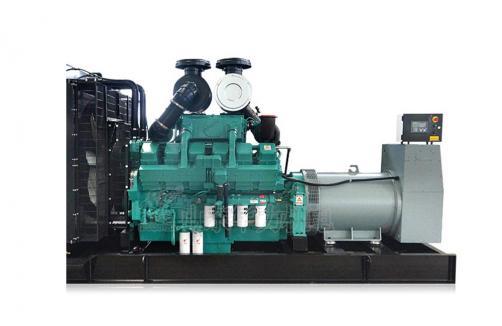

KTA38-G2

Engine manufacturer

CUMMINS

Number of Cylinders

12 cylinders

Cylinders arrangement

60°Vee

Cycle

4 stroke

Aspiration

Turbocharged and aftercooled

Bore×Stroke

159mm x159mm

Displacement

38L

Compression ratio

14.5:1

Prime Power/Speed

664KW/1500RPM

Standby Power/Speed

731KW/1500RPM

Speed Governor

Electrical

Cooling System

Forced water cooling cycle

Steady speed droop

/

Total lubrication system capacity

135L

Coolant capacity (engine only)

123.8L

Fuel Consumption at 100% Load

214g/kw.h

Starter Motor

DC24V

Stamford, Marathon, Leroy Somer,SHANHUA…

Prime power

600KW

Frequency/speed

50HZ/1500rpm (60Hz/1800rpm)

Exciter type

Single bearing, Brushless, Self-excited

Power factor

0.8

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

Insulation Grade

H

Protection Grade

IP23

The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.

Fuel System

Cooling system

Exhaust system

Coolant Heater
Lube oil heater
Electronic governor
Engine oil temperature

External Tank
Water Separator

50-60 Radiator,
Remote radiator
Cooling tower

Heavy Duty air filter
Silencer Enclosures

Alternator

Control System

Others

Voltage Connections

Anti Condensation
Heater
Permanent
Magnet Generator-PMG
Drop CT-for paralleling

Remote Control Panel
Auto Transfer Switch
ATS-Control Panel
Paralleling System
Electricity Output Cabinet

Rainproof Type
Soundproof Type
Containerized Type
Trailer Type
Spare Parts

480/277V
440/254V
416/240V
400/230V
380/220V
240/139V
220/127V
208/120V

High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available
