40kw/50kva generator

+86-537-7287666
+86 18462132881

Share This Product:

DESCRIPTION
INFORMATION

Model		HL50GF
Standby Power	KVA	55
Standby Power	KW	44
Prime Power	KVA	50
Prime Power	KW	40
Frequency	Hz	50
Voltage	V	230/400
Rated speed	rpm	1500

Cummins 4BTA3.9-G2: in-line, 4 cylinder, 4 cycle, turbocharged and after-cooler diesel engine
Bore X Stroke (mm)	102x120
Displacement (L)	3.9
Compression ratio	17.3:1
Rated speed (rpm)	1500/1800
Prime power (kW)	50
Standby power (kW)	55
Fuel injection pump	AD injection pump
Governor	Electric
Steady speed droop	/
Lubricant capacity (L)	10.9
Coolant capacity (L)	8.3
Net weight (kg)	350
Gross weigh (kg)	370
Overall dimension (LXWXH) (mm)	/

Alternator
Model	HLF50
Rated Power (KW/KVA)	40/50
Excitation Type	Brushless
Insulation class	H
Material	100% pure copper
Voltage regulation	AVR

Main features:

12 wire reconnectable stator/terminal arrangement
Easy access for installation and maintenance
2/3 pitch winding as standard, to avoid excessive neutral currents
Class H insulation with severe environmental protection as standard
Built to conform with all leading industrial and marine standards
460 AVR as standard with 1.5% regulation and 2 phase sensing
IP23/IP21 as standard

Alternator specifications
Control system	Self excited
A.V.R.	SX460
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Stator winding	Double layer concentric
Winding pitch	2/3
Winding leads	12
Stator wdg. resistance	0.129 Ohms per phase at 22℃series star connected
Rotor wdg. resistance	0.64 Ohms at 22℃
Excited stator resistance	21 Ohms at 22℃
Excited rotor resistance	0.071 Ohms per phase at 22℃
Waveform distortion	No load ＜1.5% non-distorting balanced linear load ＜5.0%
Maximum overspeed	2250 Rev/Min
Bearing drive end	BALL.6312-2RS.(ISO)
Bearing non-drive end	BALL.6306-2RS.(ISO)
Packing crate size	92X57X96 (cm)
Telephone interference	THF＜50
Cooling air	0.25m3/sec 530 cfm

Alternator options
Stamford	S1L2-Y1
SHANHUA	HLF50

Deepsea control module

Model: 7320

The DSE 7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS test alerts (with external modem).

The DSE 7320 will also monitor the mains (utility) supply. The modules include USB, RS232 and RS485 ports as well as dedicated DSE Net terminals for system expansion.

Overview dimension & Sound levels

HL40GF (Open type)
Configuration	L= Length (mm)	W= Width (mm)	H= Height (mm)	Weight (kg)
Open set	1800	840	1450	920

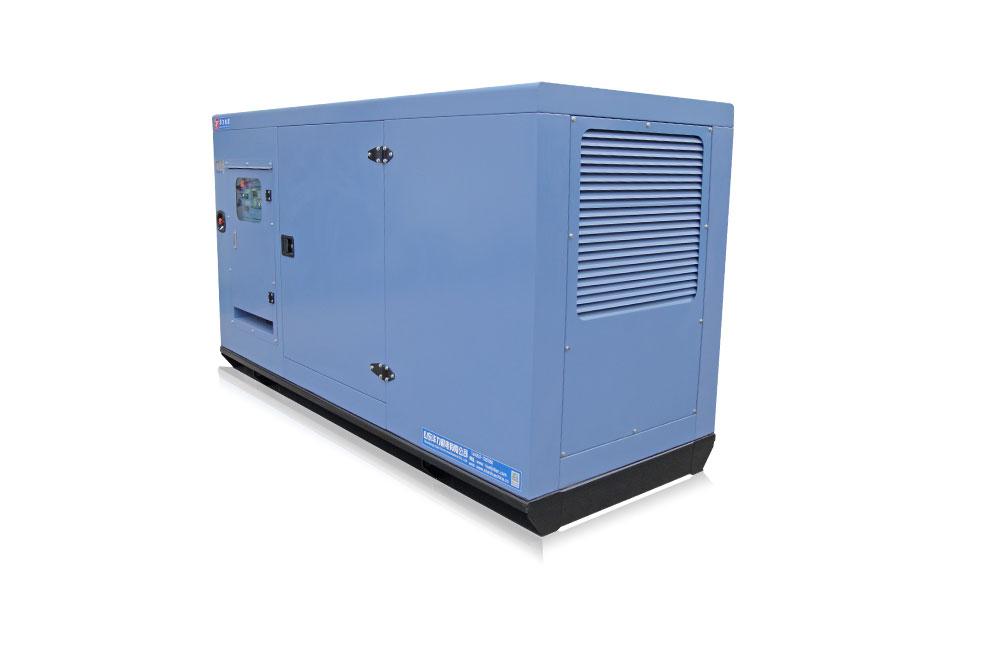

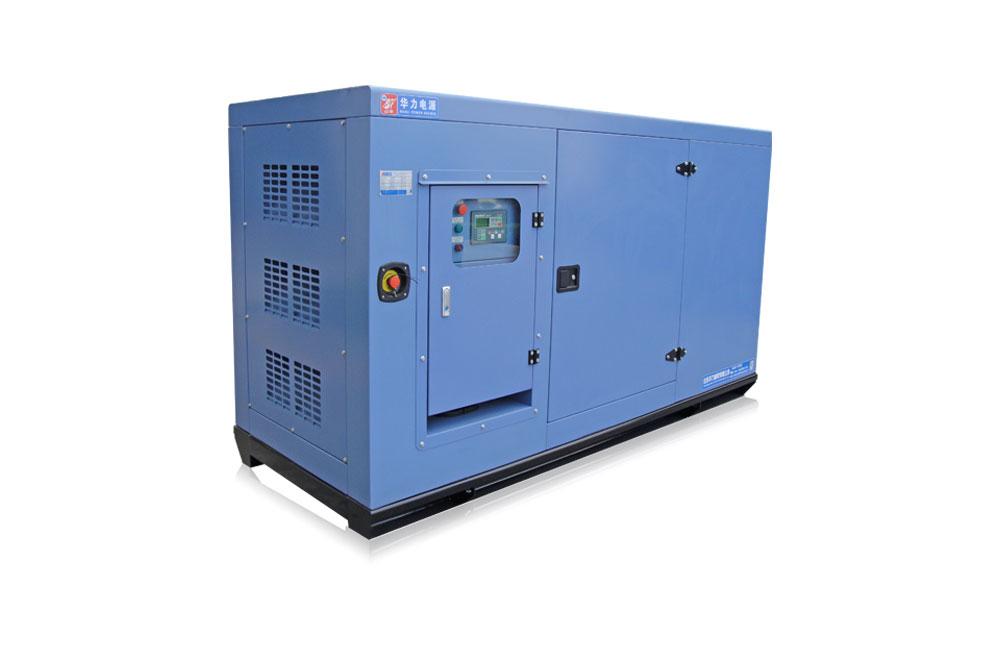

HL40GF(Silent type)
Configuration	L= Length (mm)	W= Width (mm)	H= Height (mm)	Weight (kg)
Enclosed set	2510	1060	1600	1230
