Genset model |
HL400GF |
|
Genset rated power |
400KW/500KVA |
|
Rated voltage |
400/230V (adjustable) |
|
Rated current |
720 Amps |
|
Frequency |
50 Hz |
|
Power factor |
0.8 Lagging |
|
Connecting type |
3 phase 4 wire |
|
Cooling system |
Closed cycle water-cooled with fan, water tank |
|
Overall dimension (L×W×H) mm |
3540×1250×1830 |
|
Gross weight (kg) |
4000 |
|
Diesel Engine |
|
|
Brand |
YUCHAI |
|
Model |
YC6T660-D31 |
|
Engine type |
6 cylinders vertical in Line, 4 stroke, |
|
Aspiration |
Turbocharged and intercooled |
|
Rotating speed |
1500 RPM |
|
Engine cooling system |
Water-cooled |
|
Fuel system |
Electronic control injection |
|
Starting method |
By 24V batteries |
|
Engine filter system |
Dry type air filter,fuel filter, oil filter, water filter |
|
Displacement(L) |
16.35 |
|
Bore×Stroke(mm) |
145×165 |
|
Compression ratio |
15:1 |
|
100% Load fuel consumption (g/kwh) |
≤225 |
|
Lube capacity(L) |
54 |
|
Alternator |
|
|
Brand |
SHANHUA |
|
Model |
HLF400 |
|
Excite type |
Brushless self-excited AVR regulation |
|
Connecting type |
3 phase 4 pole |
|
Steady frequency change |
0.50% |
|
No load voltage |
≥95%-105% |
|
Steady voltage |
≤±1% |
|
Insulation class |
Class H |
|
Protection grade |
IP23 |

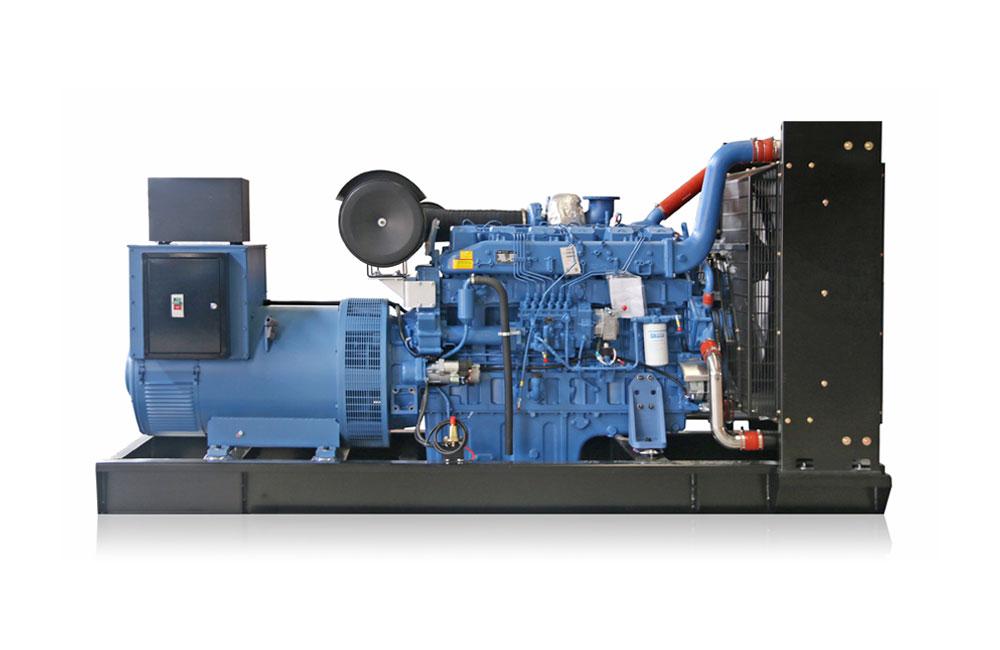

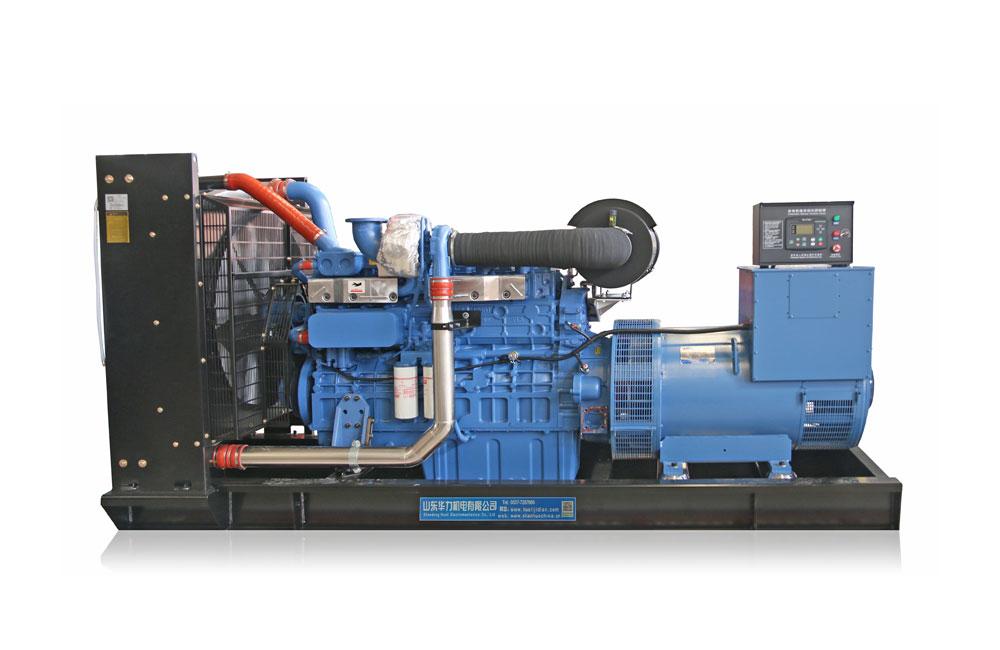

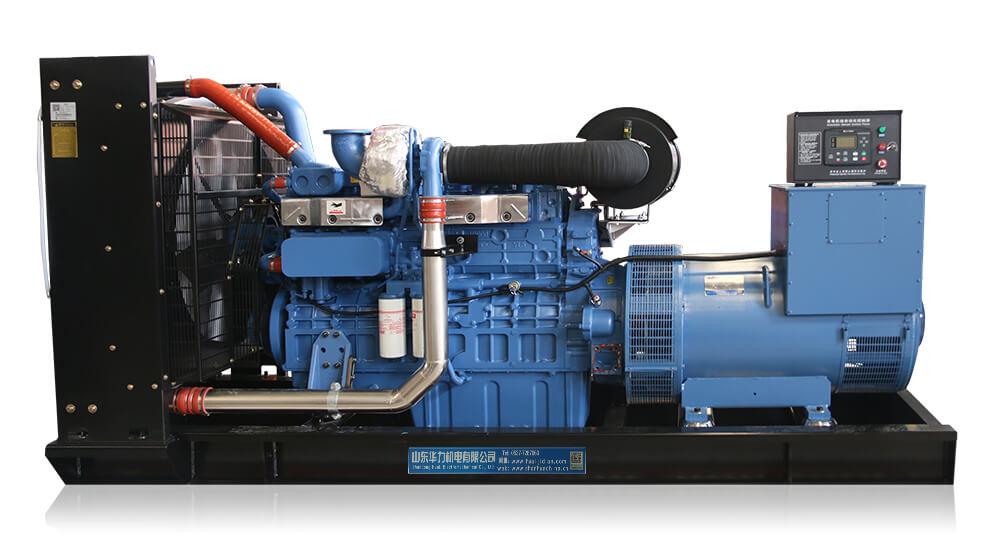

Yuchai generator set is small, lightweight, easy to operate and maintain as a backup power supply or main power supply, in mines, railways, field sites, road traffic maintenance, as well as factories, enterprises, banks, residential communities, etc. Yuchai diesel generator set overall high cost performance, well received by customers.
All the supporting power adopts domestic well-known brand Yuchai diesel engine, compact structure, large power reserve, stable operation, good speed regulation performance
Huali-yuchai generator set product advantages
1. Yuchai generator set products supporting power all use Yuchai self-produced diesel engine; Supporting motor are brand manufacturers products;
2. Digital control system; According to the different needs of users to provide remote computer remote control, group control, telemetry, automatic parallel, automatic fault protection and other different functions of the product;
3. strong power, under the altitude of 1000m can output nameplate rated power, and can output 110% of rated power in less than 1 hour;
4. fuel consumption rate and lubricating oil consumption rate is less than similar domestic products;
5. small vibration, low noise, high reliability;
6. low emissions, in line with national environmental requirements;
7. product quality meets or exceeds the relevant national standards;
8. 4 months or 1500 hours of three package period;
9. Yuchai generator set in the country set up 1168 service stations will provide users with fast and timely quality service.
