Diesel Generator Technical Data |
|||
|
Genset |
HL30GF |
Prime Power (KW) |
30 |
|
Rated frequency(Hz) |
50/60 |
Prime Power (KVA) |
37.5 |
|
Rated speed(Rpm) |
1500/1800 |
Phase |
3 Phase |
|
Voltage |
220/380V,230/400V, |
N.W (KG) |
680 |
|
Rated Current |
54A |
Size (L*W*H) mm |
1560*640*1080
|
|
Diesel Engine Technical Data |
|||
|
Brand/Original |
Cummins |
Type |
Water Cool, |
|
Engine Item No. |
4BT3.9-G2 |
Cylinder No. |
4 |
|
Displacement (L) |
3.9 |
Bore and Stoke (MM) |
102*120 |
|
Prime Power (KW) |
36 |
Fuel Consumption |
9.3L/h |
|
Standby power (KW) |
40 |
Compression ratio
|
18.0:1 |
|
Governor |
Electronic |
Aspiration Type |
Turbocharged |
|
Alternator Technical Data |
|||
|
Brand/ Original |
SHANHUA/Stamford copy/ Stamford original/Marathon/Leroy-Somer |
||
|
Alternator Model |
HLF30 |
Protection |
IP23 |
|
Alternator Type |
Brushless sel-excited |
Insulation |
Class H |
|
Phase / wire |
3-phase& 4 line |
Factor |
0.8 |
|

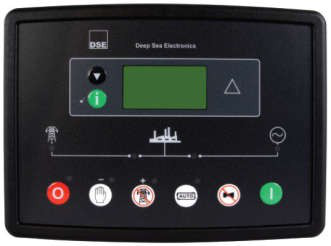

Control Module Specifications |
|||
|
Digital Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
Monitoring an extensive number of engine parameters, the module will display
warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs.
|
|||
|
Genset type |
|||
|
Silent generator |
Trailer generator |
Container geenrnator |
Generator with ATS |
|
Alternator specifications |
|
|
Control system |
Self excited |
|
A.V.R. |
SX460 |
|
Voltage regulation |
±1.0% |
|
Insulation system |
Class H |
|
Protection |
IP23 |
|
Stator winding |
Double layer concentric |
|
Winding pitch |
2/3 |
|
Winding leads |
12 |
|
Stator wdg. resistance |
0.051 Ohms per phase at 22℃series star connected |
|
Rotor wdg. resistance |
1.04 Ohms at 22℃ |
|
Excited stator resistance |
14.6 Ohms at 22℃ |
|
Excited rotor resistance |
0.118 Ohms per phase at 22℃ |
|
Waveform distortion |
No load ＜1.5% non-distorting balanced linear load ＜5.0% |
|
Maximum overspeed |
2250 Rev/Min |
|
Bearing drive end |
BALL.6312-2RS.(ISO) |
|
Bearing non-drive end |
BALL.6306-2RS.(ISO) |
|
Packing crate size |
105X57X96 (cm) |
|
Telephone interference |
THF＜50 |
|
Cooling air |
0.212m3/sec |
|
Alternator options |
|
|
Stamford |
S1L2-K1 |
|
SHANHUA |
HLF30 |
|
LSC50E3-6 (Open type) |
||||
|
Configuration |
L= Length (mm) |
W= Width (mm) |
H= Height(mm) |
Weight (kg) |
|
Open set |
1760 |
760 |
1380 |
805 |
|
LSC50S3-6 (Silent type) |
||||
|
Configuration |
L= Length (mm) |
W= Width (mm) |
H= Height (mm) |
Weight (kg) |
|
Enclosed set |
2310 |
980 |
1550 |
1125 |
