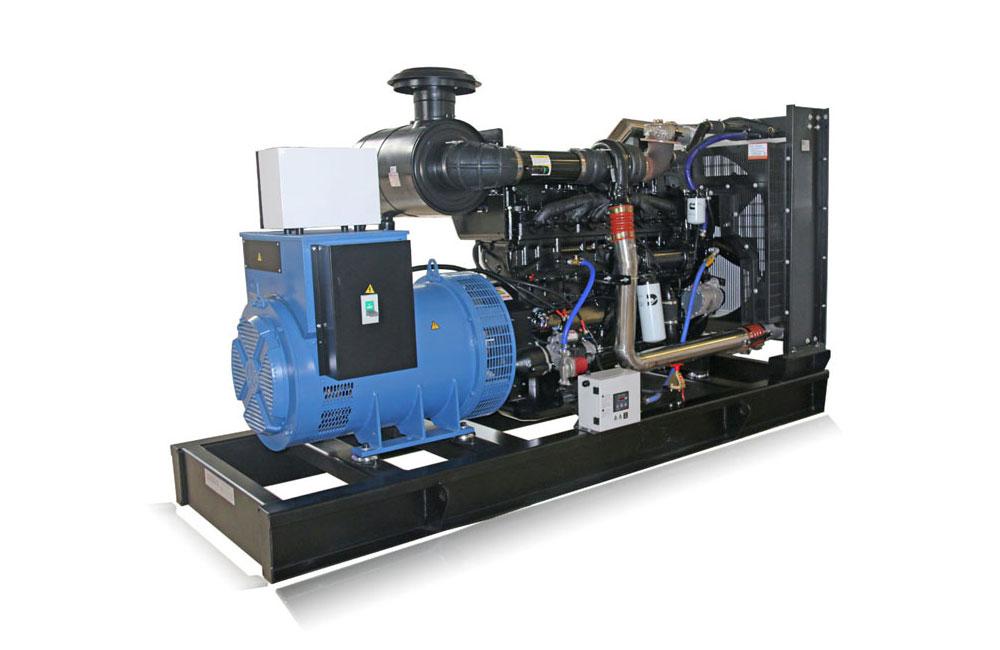

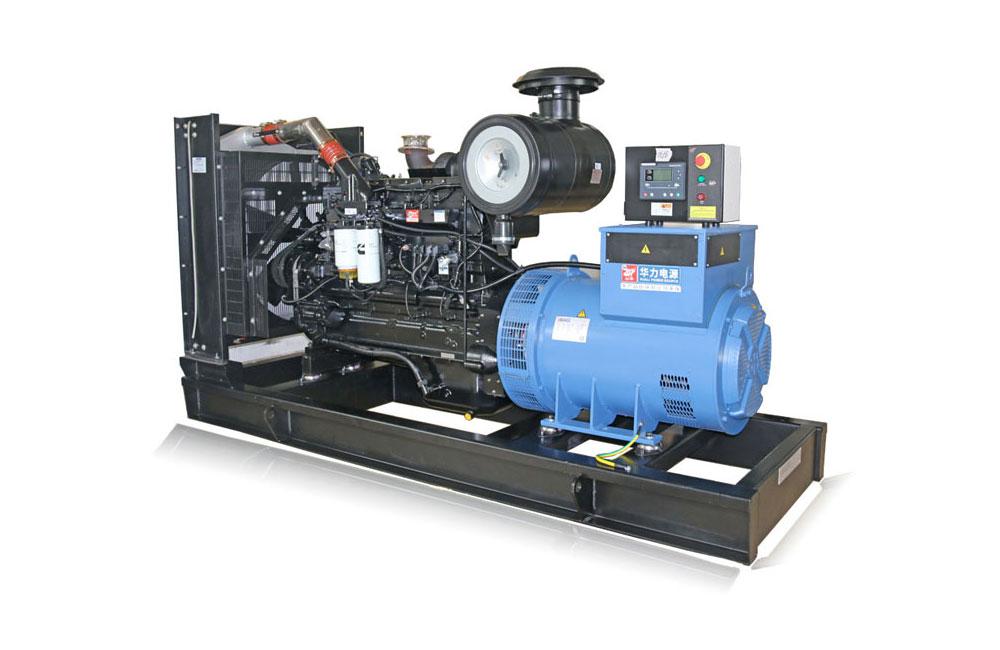

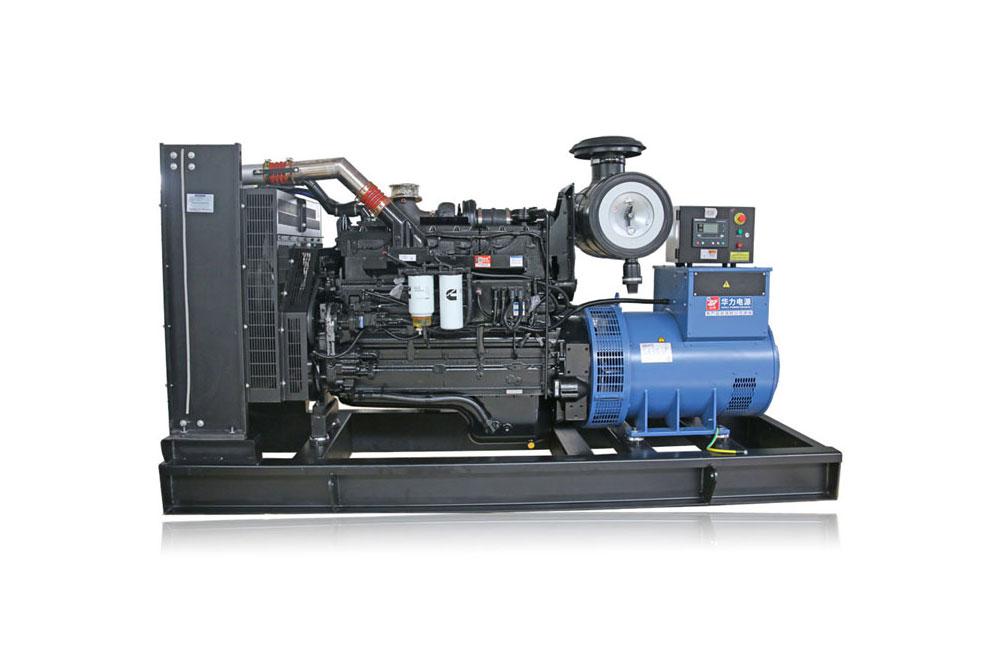

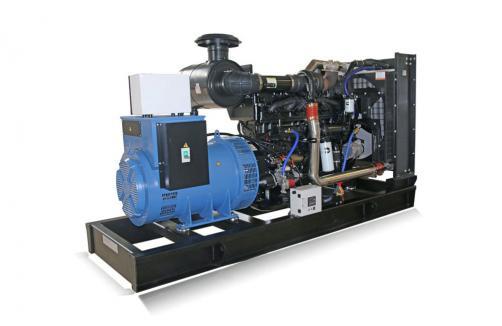

300KW Diesel Generator Technical Data |
|||
|
Genset |
HL300GF |
Prime Power (KW) |
300 |
|
Rated frequency(Hz) |
50/60 |
Prime Power (KVA) |
375 |
|
Rated speed(Rpm) |
1500/1800 |
Phase |
3 Phase |
|
Voltage |
220/380V,230/400V, |
N.W (KG) |
3700 |
|
Rated Current |
540A |
Size (L*W*H) mm |
3430*1370*1940
|
|
Diesel Engine Technical Data |
|||
|
Brand/Original |
Cummins |
Type |
Water Cool, |
|
Engine Item No. |
KTA19-G2 |
Cylinder No. |
6 |
|
Displacement (L) |
19 |
Bore and Stoke (MM) |
159*159 |
|
Prime Power (KW) |
336 |
Fuel Consumption |
85.4L/h |
|
Standby power (KW) |
370 |
Compression ratio
|
14.5:1 |
|
Governor |
Electronic |
Aspiration Type |
Turbocharged |
|
Alternator Technical Data |
|||
|
Brand/ Original |
SHANHUA/Stamford copy/ Stamford original/Marathon/Leroy-Somer |
||
|
Alternator Model |
HLF300 |
Protection |
IP23 |
|
Alternator Type |
Brushless sel-excited |
Insulation |
Class H |
|
Phase / wire |
3-phase& 4 line |
Factor |
0.8 |
|
Control Module Specifications |
|||
|
Digital Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
Monitoring an extensive number of engine parameters, the module will display
warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs.
|
|||
|
Genset type |
|||
|
Silent generator |
Trailer generator |
Container geenrnator |
Generator with ATS |
