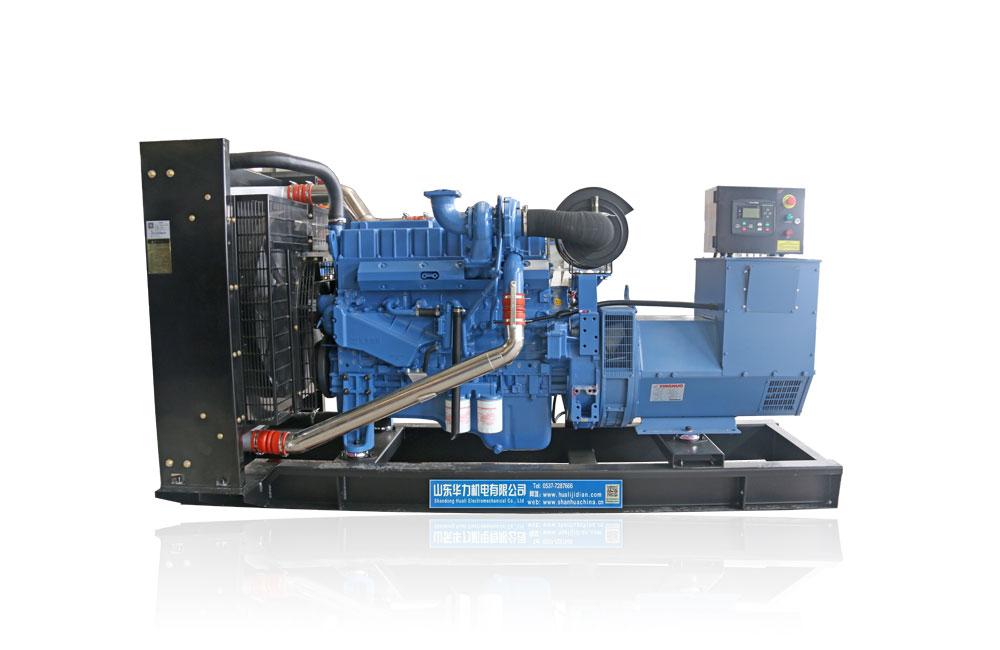

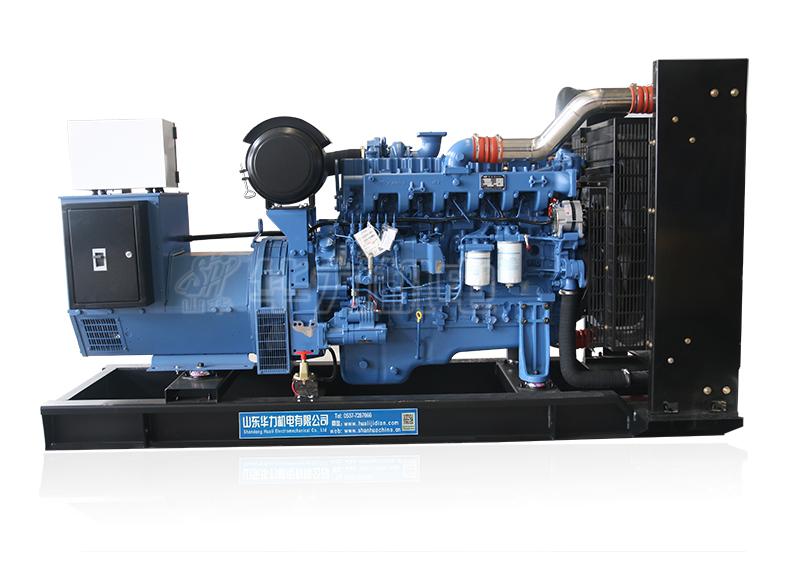

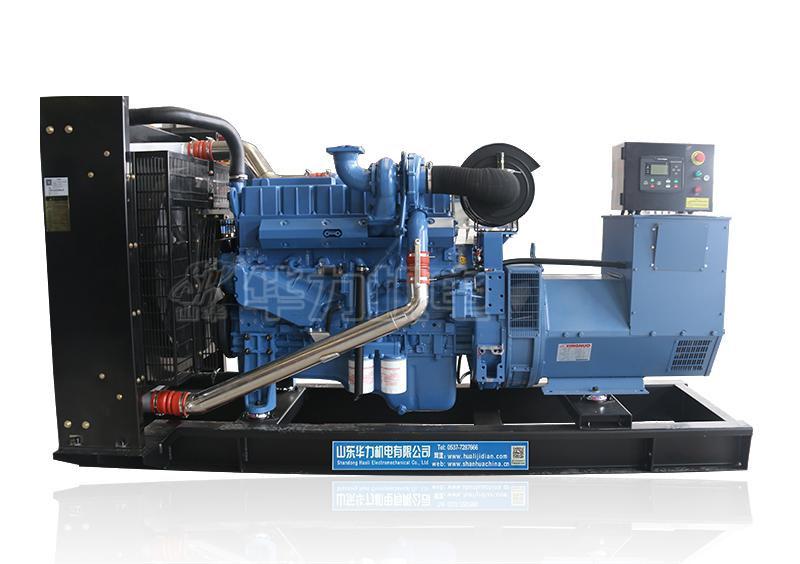

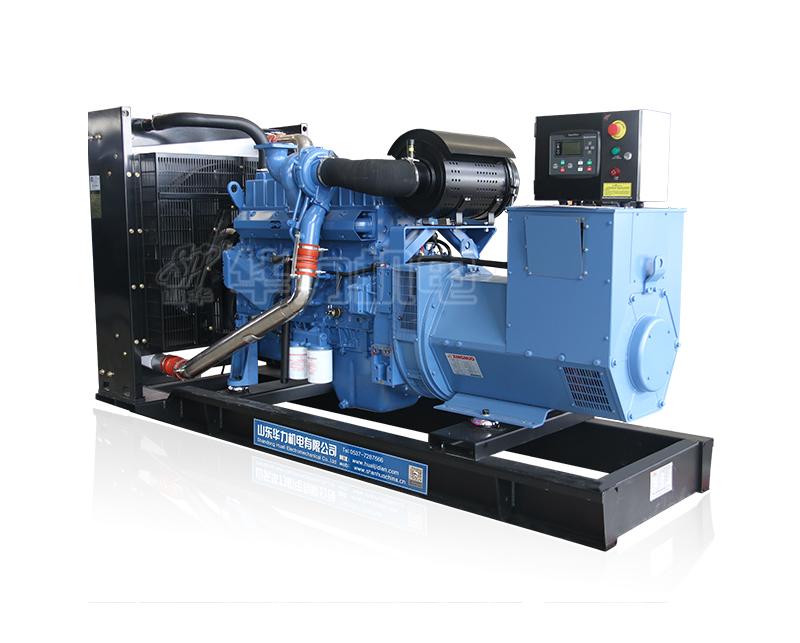

200kw Yuchai generator set
Power range: 20KW-2200KW. Yuchai generator set is small, lightweight, easy to operate and maintain as a backup power supply or main power supply, in mines, railways, field sites, road traffic maintenance, as well as factories, enterprises, banks, residential communities, etc. Yuchai diesel generator set overall high cost performance, well received by customers.
Product Advantages of of Yuchai Engine Diesel Generator Set:
1. Power range from 20KW to 1500KW, digital control system with high intelligence.
2. Small vibration, low noise and high reliability.
3. Low emissions,meet the environmental protection requirements.
4. Innovative design、 high mobility、low center of gravity、strong power、sophisticated manufacture、beautiful appearance and compact structure.
5. More durable because of the thick oil tube selection，avoid the oil leakage owing to tubing damage caused by vibration.
6. Large power reserve, stable operation, wonderful speed regulation performance and low fuel consumption.
|
Diesel Generator Technical Data |
|||
|
Genset |
HL200GF |
Prime Power (KW) |
200 |
|
Rated frequency(Hz) |
50/60 |
Prime Power (KVA) |
250 |
|
Rated speed(Rpm) |
1500/1800 |
Phase |
3 Phase |
|
Voltage |
220/380V,230/400V, |
N.W (KG) |
2045 |
|
Rated Current |
360 |
Size (L*W*H) mm |
2900*1150*1585
|
|
Diesel Engine Technical Data |
|||
|
Brand/Original |
Yuchai |
Type |
Water Cool, |
|
Engine Item No. |
YC6MK350L-D20
|
Cylinder No. |
6 |
|
Displacement (L) |
10.388 |
Bore and Stoke (MM) |
123*145 |
|
Prime Power (KW) |
235 |
Fuel Consumption |
195(g/kw.h) |
|
Standby power (KW) |
258.5 |
Combustion |
Direct Injection |
|
Governor |
Electronic |
Aspiration Type |
Turbocharged and air intercooled |
|
Alternator Technical Data |
|||
|
Brand/ Original |
SHANHUAStamford copy/ Stamford original/Marathon/Leroy-Somer |
||
|
Alternator Model |
HLF200 |
Protection |
IP23 |
|
Alternator Type |
Brushless sel-excited |
Insulation |
Class H |
|
Phase / wire |
3-phase& 4 line |
Factor |
0.8 |
