Diesel Generator Technical Data |
|||
|
Genset |
HL100GF |
Prime Power (KW) |
100 |
|
Rated frequency(Hz) |
50/60 |
Prime Power (KVA) |
125 |
|
Rated speed(Rpm) |
1500/1800 |
Phase |
3 Phase |
|
Voltage |
220/380V,230/400V, |
N.W (KG) |
1275 |
|
Rated Current |
180A |
Size (L*W*H) mm |
2240*820*1350
|
|
Diesel Engine Technical Data |
|||
|
Brand/Original |
Yuchai |
Type |
Water Cool, |
|
Engine Item No. |
YC4A165-D30 |
Cylinder No. |
4 |
|
Displacement (L) |
4.837 |
Bore and Stoke (MM) |
108*132 |
|
Prime Power (KW) |
110 |
Fuel Consumption（g/kwh） |
≤210 |
|
Standby power (KW) |
121 |
Compression ratio
|
17.5:1 |
|
Governor |
Electronic |
Aspiration Type |
Turbocharged |
|
Alternator Technical Data |
|||
|
Brand/ Original |
SHANHUA/Stamford copy/ Stamford original/Marathon/Leroy-Somer |
||
|
Alternator Model |
HLF100 |
Protection |
IP23 |
|
Alternator Type |
Brushless sel-excited |
Insulation |
Class H |
|
Phase / wire |
3-phase& 4 line |
Factor |
0.8 |
|
Control Module Specifications |
|||
|
Digital Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
Monitoring an extensive number of engine parameters, the module will display
warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs.
|
|||
|
Genset type |
|||
|

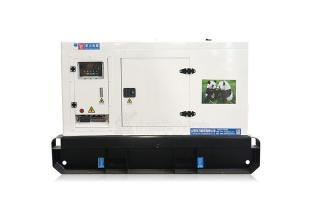

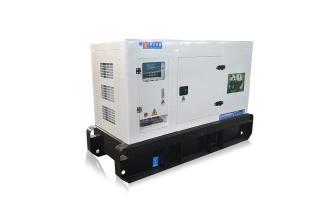

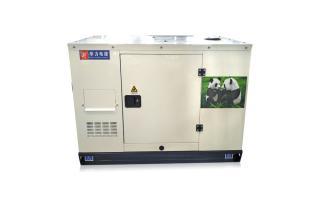

Silent generator |
Trailer generator |
Container geenrnator |
Generator with ATS |
